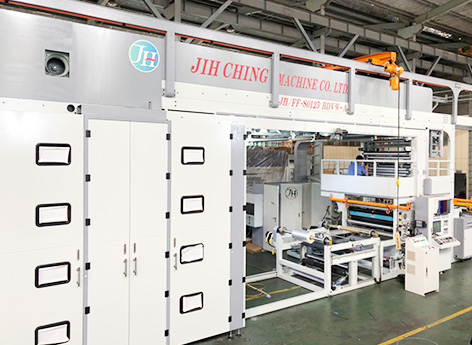

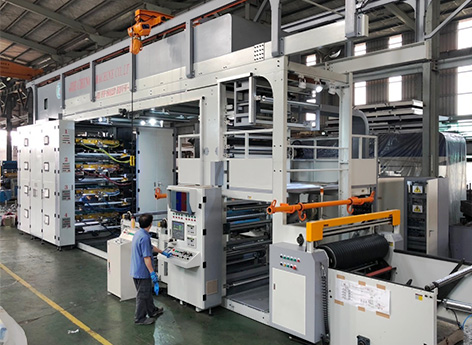

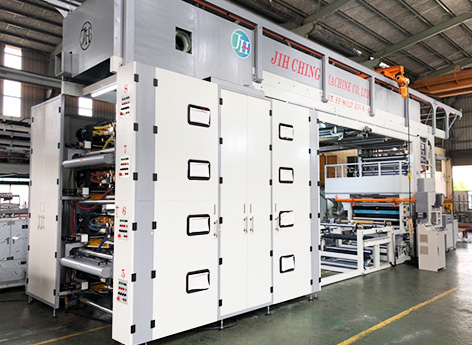

BDVW-A series for Woven bag 8 COLORS GEARLESS & SERVO MOTORS TYPE FLEXOGRAPHIC PRINTING MACHINE (OFF-LINE)
8 COLORS OFF-LINE GEARLESS AND SERVO MOTORS SERIES
MODEL
PRINTING WIDTH
FILM WIDTH
REPEAT
LENGTH
PRINTING
SPEED
M/C DIMENSION
L x W x H
JH/FF-8080BDVW-A
800 mm
820 mm
13”-45”
20~170 M / min
14950x5150x5360 mm
JH/FF-80100BDVW-A
1000 mm
1020 mm
13”-45”
20~170M / min
14950x5350x5360 mm
JH/FF-80125BDVW-A
1250 mm
1270 mm
13”-45”
20~170 M / min
14950x5600x5360 mm
JH/FF-80150BDVW-A
1500 mm
1520 mm
13”-45”
20~150 M / min
14950x5850x5360 mm
JH/FF-80160BDVW-A
1600 mm
1620 mm
13”-45”
20~150 M / min
14950x5950x5360 mm
● Whole machine with servo motors controlled, which can reduce the noise of high-speed running and improve the accuracy of registration.
● Main machine, in-feed & out-feed driving: By absolute servo motors synchronous system to provide precise control of material tension.
● In & out feed dancer roller: By super non-friction cylinder with electronic controlled to instant correct material tension.
● Printing impression adjustment: By absolute servo motors controlled, printing sleeves and ceramic anilox sleeves with rapid and accurate positioning. This function is to prevent human negligence and improve product quality.
● Function of pre-registration: To save adjustment time and avoid the waste of materials.
● Drying and exhaust system: Power output is automatically synchronized with machine speed.

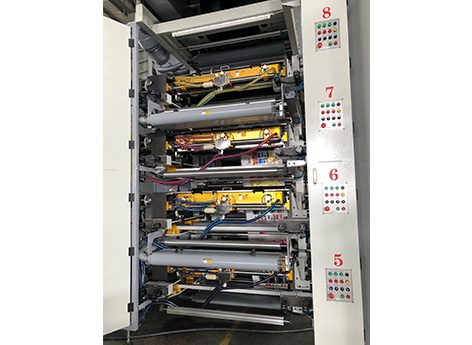

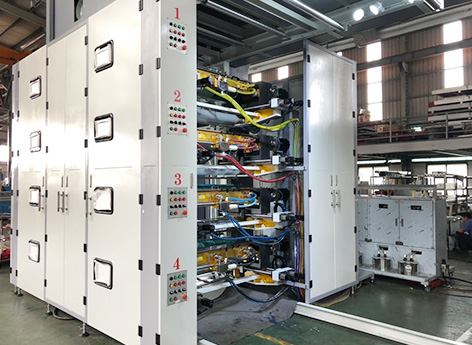

● Printing station: By linear slide with precision ball screw driving for high accuracy of impression control.
