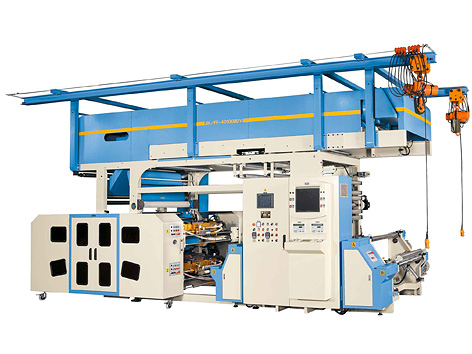

BDV series – Doctor Blade type  MEMORY MODULE TYPE SERVOMOTOR DRIVE 4 COLORS FLEXOGRAPHIC PRINTING MACHINE (OFF-LINE)


4 COLORS OFF-LINE SERIES


MODEL PRINTING WIDTH FILM WIDTH REPEAT
LENGTH		 PRINTING
SPEED

M/C DIMENSION
L x W x H
JH/FF-4060BDV 600 mm 620 mm 13” – 35” 20~200 M / min 8320 x 2475 x3541mm
JH/FF-4080BDV 800 mm 820 mm 13” – 35” 20~200 M / min 8320 x 2675 x3541mm
JH/FF-40100BDV 1000 mm 1020 mm 13” – 35” 20~200 M / min 8320 x 2875 x3541mm
JH/FF-40125BDV 1250 mm 1270 mm 13” – 35” 20~200 M / min 8320 x 3125 x3541mm
JH/FF-40150BDV 1500 mm 1520 mm 13” – 35” 20~200 M / min 8320 x 3375 x3541mm
JH/FF-40160BDV 1600 mm 1620 mm 13” – 35” 20~200 M / min 8320 x 3475 x3541mm



  • FCD 45 case iron machine frame, vibration-free at high speed operation.
  • Main motor by using servo motor (YASKAWA brand) and driven by timing belt, quiet and precise.
  • Precise doctor blade chamber system with ceramic anilox roller, suitable for superfine printing quality.
  • PLC memory module type (300 sets) servomotor auto position control system for impression adjustment.
  • Printing roller, in-feed and out-feed are driven by servo motor (YASKAWA brand).
  • Use electronic type push-button device to adjust the registration with forward and backward adjustment.
  • Automatic tension control (MITSUBISHI brand) + magnetic brake on unwind and rewind.
  • Electronic type automatic edge position control (EPC) on unwind.
  • Electric control by using PLC (MITSUBISHI brand) with full color touch-screen human machine interface (HMI).
  • Single-chip advanced print inspection system with full color LCD monitor.
  • All rotating rollers are treated with dynamic balance correct.
  • Line speed controlled by harmony synchronous driving system.
